Product Details:
|

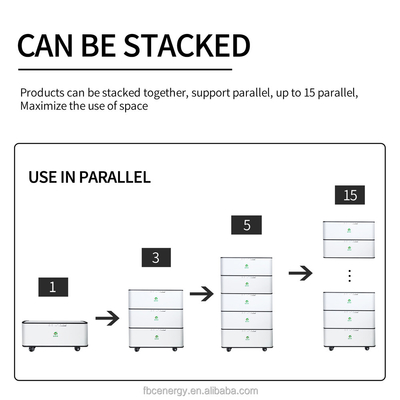

| Features: | Stackable | Warranty: | 3months-1year |
|---|---|---|---|
| Free Installation Service: | NO | Application: | Home |
| Solar Panel Type: | Monocrystalline Silicon | Battery Type: | Lithium Ion, 5KW Household Hybrid Solar System |
| Mounting Type: | Ground Mounting/ Roof Mounting/ Carport Mounting | Load Power (W): | 3KW, 8KW, 6KW, 5kW, 10KW |
| Output Voltage (V): | 110-240V | Output Frequency: | 50/60Hz |
| Work Time (h): | 24 Hours | Certificate: | CE,UN38.3,MSDS |

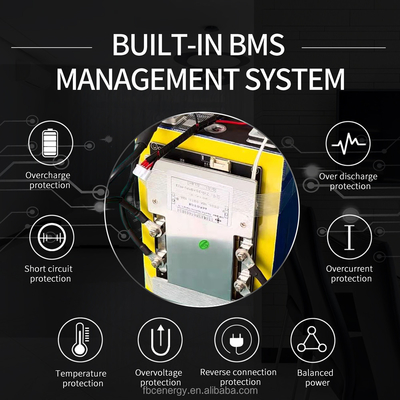

| Pre-sales Project Design: | Y | Protection: | Built-in Smart BMS |
| OEM/ODM: | Support Customization | Port: | YANTIAN |
| High Light: | 3kw All In One Solar System,4kw All In One Solar System,10kw on grid solar system |
||
|

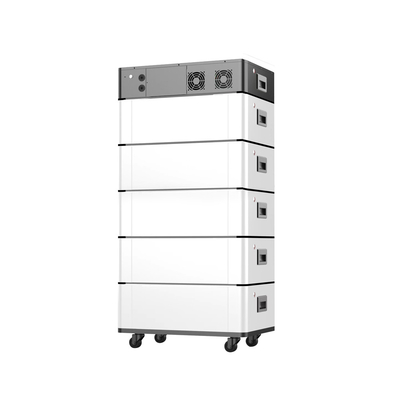

Product number
|
FBC-HS01
|
|
|

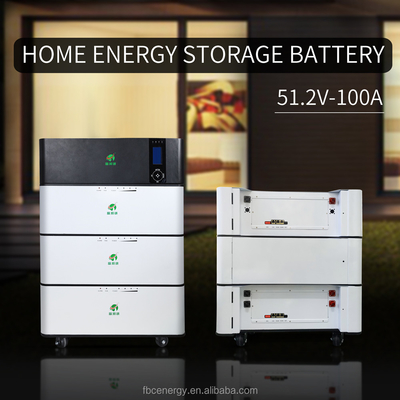

Battery(single)
|
|
|
|
Product specification
|
16S1P*51.2V-100AH
|
|
|
Nominal Voltage
|
51.2V
|
|
|
Nominal Capacity
|
100AH
|
|
|
Discharge Current
|
100A
|
|
|
Charging Current
|
50A
|
|
|
Battery Size
|
600*405*195mm
|
|
|
Battery Weight
|
56KG
|
|
|
Service Life
|
6000
|
|
|
Cooling Mode
|
Self Cooling
|
|
|
Relative Temperature
|
20%~95%RH
|
|
|
Degree Of Protection
|
IP20
|
|
|
Service Life
|
＞15years @ 25℃
|
|
|
Charging Temperature
|
0~45℃
|
|
|
Discharge Temperature
|
-20~60℃
|
|
|
Storage Temperature
|
-10~35℃,Less than 6 months
|
|
|
Communiction Mode
|
RS485,RS232,CAN
|
|
|
Inverter
|
|
|
|
Rated Power
|
4KW
|
|
|
Capable of Stariing Elctiric Motor
|
4HP
|
|
|
Waveform
|
pure sine wave/same as input(bypass mode)
|
|
|
Output Voltage Range and Error
|
120V/240VAC(+/--10%RMS)
|
|
|
Output frequency
|
50Hz/60Hz+/-0.3Hz
|
|
|
Conversion time
|
10ms(MAX)
|
|
|
Solar Charging
|
|
|
|
Maximum PV Charge Current
|
80A
|
|
|
Maximum PV Array Power
|
5000W
|
|
|
MPPT Range @ Operating Voltage(VDC)
|
60~140VDC
|
|
|
Maximum PV open circuit voltage
|
150VDC
|
|
|
Maximum Efficiency
|
＞98%
|
|
|
Power Consumption
|
＜150W
|
|
|
AC Input
|
|
|
|
Voltage
|
230VAC
|
|
|
Selectable Voltage Range
|
184~272VAC(UPS):154~272VAC(ARL)
|
|
|
Frequency Range
|
50Hz/60Hz(Auto Sensing)
|
|
|
AC charger
|
|
|
|
Max Charging Current
|
40A
|
|
|
Overcharge protection S.D
|
62V
|
|
|
Other
|
|
|
|
Use ambient temperature
|
0~45℃
|
|
