Product Details:
|
| Features: | Stackable | Battery Type: | LiFePO4, Home Hybrid Off-grid Solar Battery |
|---|---|---|---|
| Cycle Life: | 6000 | Protection Level: | IP20 |
| Battery Size: | 10kw | Protection: | Built-in Smart BMS |
| Protection2: | Has Stackable Inverters | Application: | Solar Energy Storage Systems/Electric Power Systems/Home Appliances |
| OEM/ODM: | Support Customization | Port: | YANTIAN |
| High Light: | solar 10kwh 48v lifepo4,off grid 10kwh 48v lifepo4,IP20 solar energy storage battery |
||

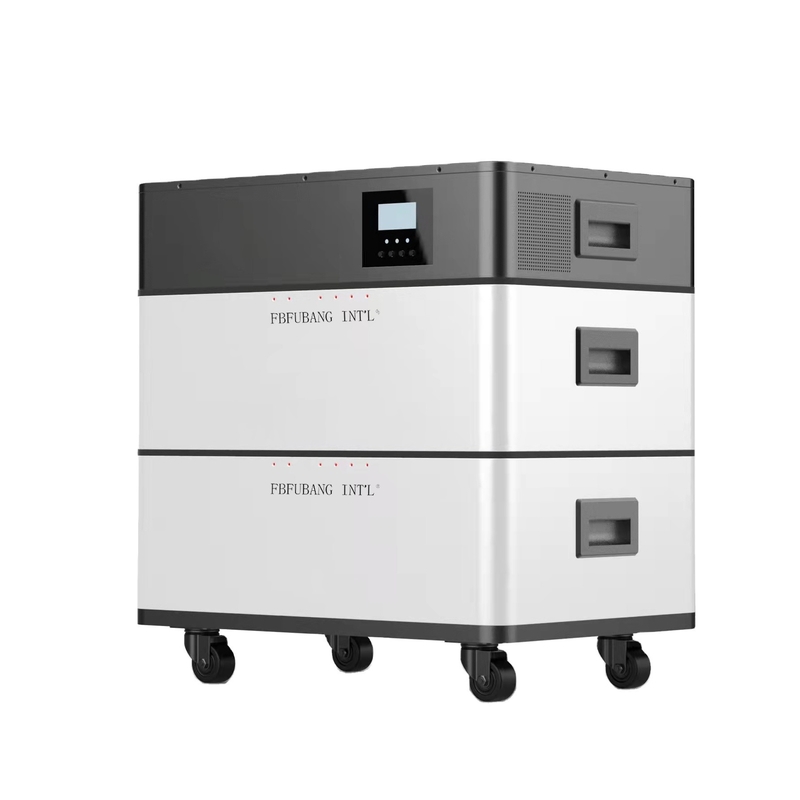

48V Lifepo4 battery solar Energy Storage system 10kw solar power system energy storage battery solar energy system
| Performance parameters | ||||
| output power | 10KW | 15KW | 20KW | 25 KW |
| Phase | Simplex | Simplex | Simplex | Simplex |
| maximum output power | 3KW/4KW/5KW optional | 3KW-5KW optional | 3KW-5KW optional | 3KW-5KW optional |
| Rated voltage | 51.2V | 51.2V | 51.2V | 51.2V |
| Rated Capacity | 200AH | 300AH | 400AH | 500AH |
| Continuous discharge current | 100A | 100A | 100A | 100A |
| Peak maximum discharge current | 110A/10S | 110A/10S | 110A/10S | 110A/10S |
| Standard charging current | 50A | 50A | 50A | 50A |
| Fast charge current | 100A | 100A | 100A | 100A |
| Number of expandable batteries | 2~15 | 3-15 | 4-15 | 5-15 |
| Optional capacity range | 10.24~76.8KWH | 15.36-76.8KWH | 20.48-76.8KWH | 25.6-76.8KWH |
| cooling method | self-cooling | self-cooling | self-cooling | self-cooling |
| Battery Type | Lithium Iron Phosphate | Lithium Iron Phosphate | Lithium Iron Phosphate | Lithium Iron Phosphate |
| design life | ＞15 years@25℃ | ＞15 years@25℃ | ＞15 years@25℃ | ＞15 years@25℃ |
| cycle life | ≈10000 times | ≈10000 times | ≈10000 times | ≈10000 times |
| ≈10000 times | 50HZ/60HZ auto detect | 50HZ/60HZ auto detect | 50HZ/60HZ auto detect | 50HZ/60HZ auto detect |
| Grid voltage range | 230V(170Vac~280Vac) ±2% 110V(90Vac-280Vac)±2% | 230V(170Vac~280Vac) ±2% 110V(90Vac-280Vac)±2% | 230V(170Vac~280Vac) ±2% 110V(90Vac-280Vac)±2% | 230V(170Vac~280Vac) ±2% 110V(90Vac-280Vac)±2% |
| PV maximum input power | 4200W | 4200W | 4200W | 4200W |
| MPPT voltage range | 60-115Vdc | 60-115Vdc | 60-115Vdc | 60-115Vdc |
| The charging and discharging efficiency of the whole machine | >92% | >92% | >92% | >92% |
| Battery voltage range | 40.0Vdc~60Vdc ± 0.6Vdc (under voltage alarm / shutdown voltage / over voltage alarm / over voltage recovery... LCD screen can be set) | 40.0Vdc~60Vdc ± 0.6Vdc (under voltage alarm / shutdown voltage / over voltage alarm / over voltage recovery... LCD screen can be set) | 40.0Vdc~60Vdc ± 0.6Vdc (under voltage alarm / shutdown voltage / over voltage alarm / over voltage recovery... LCD screen can be set) | 40.0Vdc~60Vdc ± 0.6Vdc (under voltage alarm / shutdown voltage / over voltage alarm / over voltage recovery... LCD screen can be set) |
| Warranty | Battery (10 years) Inverter (5 years) | Battery (10 years) Inverter (5 years) | Battery (10 years) Inverter (5 years) | Battery (10 years) Inverter (5 years) |
| Inverter size/weight | 602*403*319mm/15KG | 602*403*139mm/15KG | 602*403*139mm/15KG | 602*403*139mm/ 15KG |
| Battery size/weight | 602*403*200mm/ 55KG(single layer) |
602*403*200mm/55KG(single layer) | 602*403*200mm/55KG(single layer) | 602*403*200mm/ 55KG(single layer) |
| Chassis size/weight | 602*403*82mm/60KG | 602*403*82mm/60KG | 602*403*82mm/60KG | 602*403*82mm/60KG |
| Installation method | Stacked | Stacked | Stacked | Stacked |
| Certified Specifications | ||||
| certified product | CE, UN38.3, MSDS, Shipping, Dangerous Package | |||
| Cell certification | CE,UL,IEC 62109-1&-2, IEC 62477,EN61000,UN38.3 | |||
