Product Details:
|
| Load Power (W): | 3KW, 8KW, 6KW, 5kW, 10KW | Battery Type: | Lithium Ion |
|---|---|---|---|
| Solar Panel Type: | Monocrystalline Silicon, Polycrystalline Silicon | Pre-sales Project Design: | Y |
| High Light: | 10kw household energy storage system,Split phase household energy storage system,off grid lifepo4 li ion battery |
||

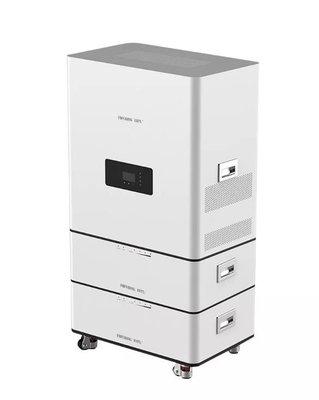

The default specification of this product is 5kw inverter plus 10.24kwh Off-grid energy storage battery. For more details, please contact customer service
Split-phase inverter lifepo4 li-ion battery Stacked energy storage battery 10kw energy storage system household energy storage battery
| product | type | split phase |
| Battery Power (kwh) | 10kwh,15kwh,20kwh,25kwh | |
| Inverter Power (kw) | 4kw 5 kw 6kw 8kw 10kw 12kw | |
| battery module | Nominal voltage | 51.2V |
| Nominal capacity | 100AH | |
| Size | 602L*403W*200Hmm | |
| Weinght | 55KG | |
| Inverter module | Size | 602L*403W*650Hmm/602L*403W*760Hmm |
| Weight | 73kg .76kg.80kg/102kg.104kg.113kg | |
| service life | 0.2C charge and discharge, 6000 times ≥80% initial capacity | |
| cooling method | self-cooling | |
| relative temperature | 20%-95%RH | |
| protection level | IP20 | |
| service life | ＞15 years@25℃ | |
| charging temperature | 0～45℃ | |
| storage temperature | -10～35℃, less than 6 months | |
| communication method | RS485 RS232 CAN | |
| Support Inverter Brands | Goodwe,Growatt,Victron,LXP,Sofar,Deye,Sarmatec,SREN,TBB,SMA,Jinlang, Wheatfield, Riyueyuan, Suzhou Jiaxun Natong | |
| Remark | Battery warranty is 3~5 years, inverter warranty is 2~3 years | |
