Product Details:
|
| Warranty: | 3months-1year | Anode Material: | LFP |
|---|---|---|---|
| Chargeable: | Yes | Application: | Home Appliances, Solar Energy Storage Systems, Uninterruptible Power Supplies, Solar Energy Storage Systems/Electric Power Systems/Home Appliances |
| Weight: | 49.5KG | The Charging Ratio: | 0.5~1C |
| The Discharge Rate: | 0.5~1C | Storage Type: | -10~35℃,LESS THAN 6 MONTHS |
| Battery Type: | Wall Mounted Energy Storage Battery | Battery Size: | 48V 100AH |
| Cycle Life: | 5000 | Battery Cell: | Lifepo4 |
| Protection Level: | IP20 | Composed Type: | In Series And Parallel |
| Protection: | Built-in Smart BMS | OEM/ODM: | Support Customization |
| Port: | YANTIAN | ||
| High Light: | 100Ah energy storage system battery,Wall Mounted energy storage system battery,battery lifepo4 48v 100ah |
||

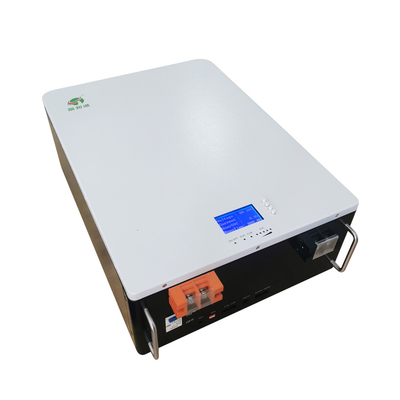

customizable 100Ah capacity energy storage system battery 48v Lifepo4 battery
PRODUCT NUMBER | FBC—HSO2.1 |
Specification | 15S2P—48V—100AH |
NOMINAL VOLTAGE | 48V |
NOMINAL CAPACITY | 100AH |
DISHARGE CURRENT | 100A |
CHARGING CURRENT | 50A |
SIZE | 400(L)*580(W)*170(H) |
WEIGHT | 49.5KG |
Cycle life | 5000 |
COOLING MODE | SELF—COOLING |
RELATIVE TEMPERATURE | 20%~95%RH |
DEGREE OF PROTECTION | IP20 |
SERVICE LIFE | ＞15YEAR@25℃ |
CHARGING TEMPERATURE | 0~45℃ |
DISCHARGE TEMPERATURE | -20~60℃ |
STORAGE TEMPERATURE | -10~35℃,LESS THAN 6 MONTHS |

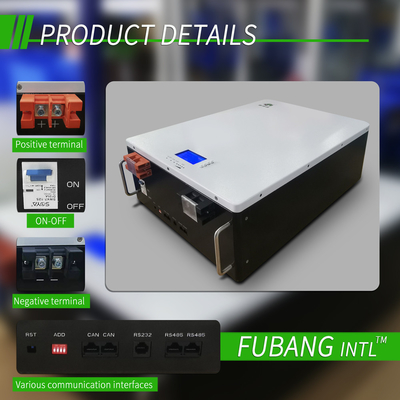

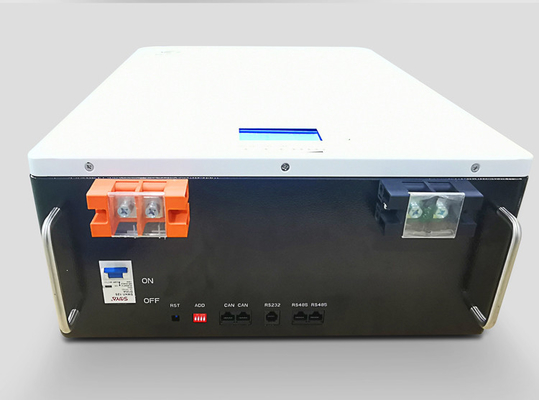

COMMUNICATION MODE | RS485,RS232,CAN |
