Product Details:
|
| Special Features: | External Battery | Controller Type: | MPPT |
|---|---|---|---|
| Battery Type: | LiFePO4, Wall Mounted Energy Storage Battery | Power Source: | Solar Panel |
| Battery Size: | 120AH | Nominal Voltage: | 48V |
| Size: | 540*390*130mm | Weight: | 34kg |
| Protection Level: | IP20 | Protection: | Built-in Smart BMS |
| Communication Method: | RS485/RS232/CAN/Customization | Application: | BOATS, SUBMARINES, RV,solar Systems,data Center,Bank,UPS |
| Port: | YANTIAN | ||
| High Light: | 120AH Solar Wall Battery,48V Lithium Ion Battery,Photovoltaic Lithium Ion Battery |
||
48v lithium ion battery with LCD screen photovoltaic home 48V 120AH energy storage battery
Stackable Floor Type Power Can
Features:
* >6000 Cycles at 85% depth of discharge-8000times 40% depth of discharge
* Create systems 48Volts-1000ah or more.

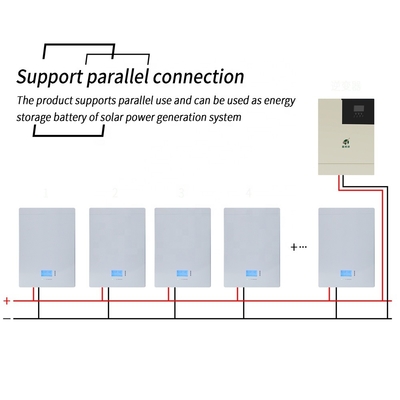

* Support Series and/or Parallel operation
* Automatic system cell balancing
* IP56 water and dust resistant Group 31 case
* Temperature monitoring
* Exceptional voltage stability
* Rugged mechanical design
* Maintenance free
* No hydrogen generation or gassing
* <70% the weight of similarly sized SLA batteries
* Stock Cell available for quick delivery for worldwide
Product Description
| Product parameter | |
| Specification | 8S1P-25.36V-120AH |
| Nominal Voltage | 48V |
| Capacity | 120AH |
| Charge current | 50A |
| Discharge current | 100A |

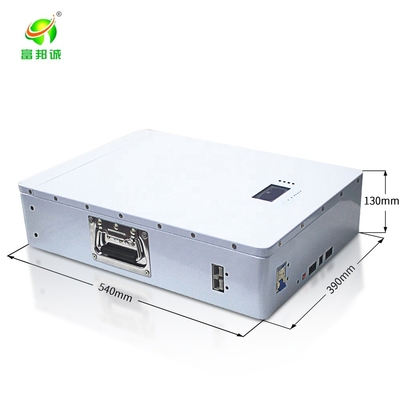

| Physical dimension | L:540*W:390*H:130(mm) |
| Weight | 34KG |
| Cycle life | 5000 |
| Cooling method | Self Cooling |
| Charging temperature | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Support inverter brand | Goodwe/Growat/Victorn/LXP/Sofar/Deye/Sematec/SREN/TBB/SMA |
| In series and parallel | Support |
Purchase suggestions
1. To purchase a complete set of products, please install according to the installation manual or contact the local PV installation company for installation.
2. You can also only purchase the storage battery and inverter, and then contact the local photovoltaic installation to install the photovoltaic and connect the energy storage equipment, which has a high cost performance ratio.
