Product Details:
|
| Battery Type: | LiFePO4, Wall Mounted Energy Storage Battery | Battery Size: | 120AH |
|---|---|---|---|
| Nominal Voltage: | 48V | Size: | 540*390*130mm |
| Weight: | 34kg | Protection Level: | IP20 |
| Protection: | Built-in Smart BMS | Communication Method: | RS485/RS232/CAN/Customization |
| Application: | BOATS, SUBMARINES, RV,solar Systems,data Center,Bank,UPS | Port: | YANTIAN |
| High Light: | 48v 120ah lithium battery,5kwh Solar Wall Battery,Solar Wall Battery With LCD Display |
||
| Powerwall Home Battery Datasheet | ||
| 1 | Nominal Voltage | 48V (51.2V) |
| 2 | Nominal Capacity | 100AH, 150AH, 200AH |
| 3 | Nominal Energy | 5KWH, 7.5KWH, 10KWH |
| 4 | Batetry Type | Lithium Ion |
| 5 | BMS | Built-in BMS |
| 6 | Operation Temperature | Discharge: -20℃-60℃(pack internal temperature) |
| 7 | Operation Voltage Range | 43.2～58.4V |
| 8 | MAX Constant Charge Current | 100A |
| 9 | MAX Constant Discharge Current | 120A, 500A(3S), 750A(1S) |
| 10 | Efficiency | 98% |
| 11 | Cycle Life (100% DOD) | >3000 cycles (100% DOD); >6000 cycles (80% DOD) |
| 12 | Size | L 485mm * W 240mm * H 660mm |
| 13 | Battery Cell | 18650 Type (UN38.3, UL 1642, CE) |
| 14 | Battery Pack | Comply UN38.3, CE |
| 15 | Communication | Can-bus, RS 485 |
| 16 | Others | LCD Screen, Max 14pcs Connect in Parallel |
| 10 Years Warranty, More than 20 Years Lifetime | ||
|
Product parameter
|
|
|
Specification
|
8S1P-25.36V-120AH
|
|
Nominal Voltage
|
48V
|
|
Capacity
|
120AH
|
|
Charge current
|
50A
|
|
Discharge current
|
100A
|
|
Physical dimension
|

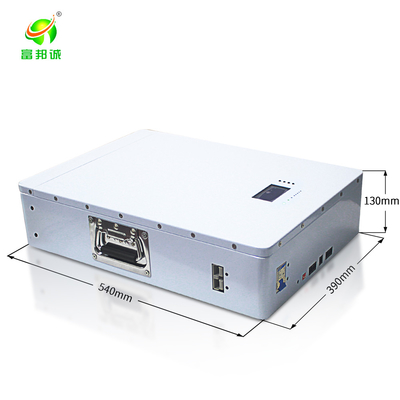

L:540*W:390*H:130(mm)
|
|
Weight
|
34KG
|
|
Cycle life
|
5000
|
|
Cooling method
|
Self Cooling
|
|
Charging temperature
|
0~45℃
|
|
Discharge temperature
|
-20~60℃
|
|
Support inverter brand
|
Goodwe/Growat/Victorn/LXP/Sofar/Deye/Sematec/SREN/TBB/SMA
|
|
In series and parallel
|
Support
|
