Product Details:
|
| Warranty: | 3months-1year | Anode Material: | LFP |
|---|---|---|---|
| Chargeable: | Yes | Application: | Home Appliances, Electric Power Systems, Solar Energy Storage Systems, BOATS, SUBMARINES, RV,solar Systems,data Center,Bank,UPS |
| Battery Size: | Prismatic Battery, 120AH | Weight: | 34KG, 34kg |
| The Charging Ratio: | 0.2~1C | The Discharge Rate: | 0.2~1C |
| Storage Type: | -20~45℃ | Battery Type: | Wall Mounted Energy Storage Battery |
| Nominal Voltage: | 48V | Size: | 540*390*130mm |
| Protection Level: | IP20 | Protection: | Built-in Smart BMS |
| Communication Method: | RS485/RS232/CAN/Customization | OEM/ODM: | Support Customization |
| Port: | YANTIAN | ||
| High Light: | Wall Mount 48V 120AH Lithium Battery,48V 120AH Lithium Battery Home,48 volt 120 ah battery |
||

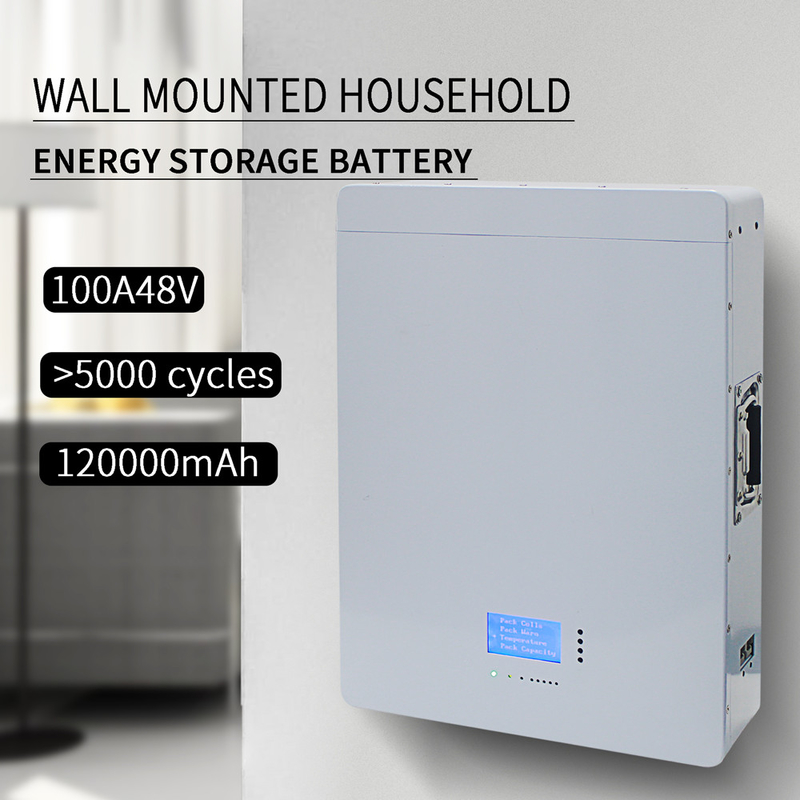

Customizable 48V battery storage system Wall Mount home solar PV 48V 120AH storage system batteries
| Nominal Voltage: | 48V (16S1P) | |||
| Nominal Capacity: | 100Ah | |||
| Battery Type: | 16S1P Lifepo4 3.2v 100ah Grade A Battery cell | |||
| Weight: | ≤45Kg each battery | |||
| Internal Resistance: | ≤120mΩ | |||
| End of charge Voltage: | 58.4V | |||
| Connector | bolt screw or M8 or anderson | |||
| End of charge Current: | 100mA | |||
| Displacy | LCD display (voltage , capacity, and watts etc) | |||
| End of discharge Voltage: | 36.8V | |||
| Charge Method: | 0.2C(0.5A) CC/CV | |||
| Max.Continuous charge current: | 100A | |||
| Nominal Discharge Current: | 100A bms-200A bms ( depend on your inverter) | |||
| Max. Pluse Discharge Current: | 150A/10S for 100A bms -300A/10S for 200A bms | |||
| Operating Temp.: | Charge: 0~45℃ | |||
| Discharge: -10~55℃ | ||||
| Storage Temp.(60-80% SOC Storage): | -10~45℃ | |||
| Cycle Life: | more than 6000 times at 90% dod | |||
| BMS protection: | Over-charge,over-discharge,over-current,Short-circut | |||
Delivery time : Normally delivery within 7-20days, but can arrange in advance if order confirm or priduce faster according to quanity or other reason.
|
Product parameter
|
|
|
Specification
|
8S1P-25.36V-120AH
|
|
Nominal Voltage
|
48V
|
|
Capacity
|
120AH
|
|
Charge current
|
50A
|
|
Discharge current
|
100A
|
|

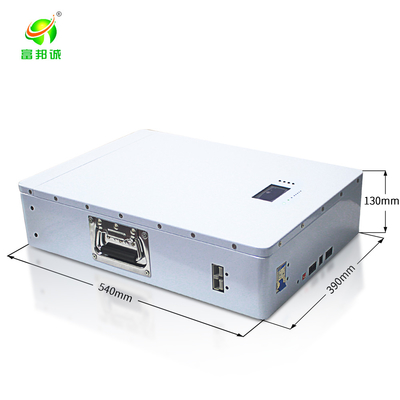

Physical dimension
|
L:540*W:390*H:130(mm)
|
|
Weight
|
34KG
|
|
Cycle life
|
5000
|
|
Cooling method
|
Self Cooling
|
|
Charging temperature
|
0~45℃
|
|
Discharge temperature
|
-20~60℃
|
|
Support inverter brand
|
Goodwe/Growat/Victorn/LXP/Sofar/Deye/Sematec/SREN/TBB/SMA
|
|

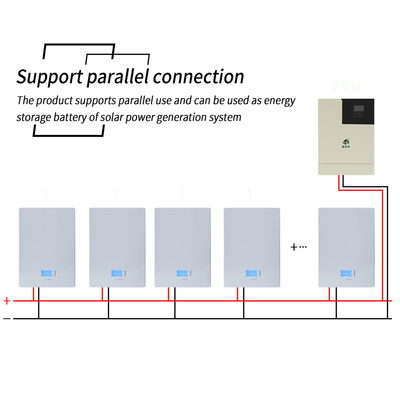

In series and parallel
|
Support
|
