Product Details:
|
| Features: | Built-in Smart BMS | Warranty: | 3months-1year |
|---|---|---|---|
| Anode Material: | LFP | Chargeable: | Yes |
| Application: | Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Folklifts, Electric Vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems | Battery Size: | Prismatic Battery, 120AH |
| Weight: | 34KG, 34kg | The Charging Ratio: | 0.2~1C |
| The Discharge Rate: | 0.2~1C | Storage Type: | -20~60℃ |
| Battery Type: | Wall Mounted Energy Storage Battery | Nominal Voltage: | 48V |
| Size: | 540*390*130mm | Protection Level: | IP20 |
| Battery Cell: | Lifepo4 | Communication Method: | RS485/RS232/CAN/Customization |
| OEM/ODM: | Support Customization | ||
| High Light: | 5kwh 48v Lithium Ion Battery,120ah 48v Lithium Ion Battery,Home Solar Cell With LCD Display |
||
Structure of 48V 100ah Lifepo4 Battery:
48V 100Ah lithium battery = premium Grade A 3.2V LifePo4 battery cells + high-quality Balance BMS + metal case+ LCD screen( display) + handle+Communication protocol RS485 CANBUS
*>6000 Cycles at 85% depth of discharge-8000times 40% depth of discharge
*Create systems 48Volts-1000ah or more.

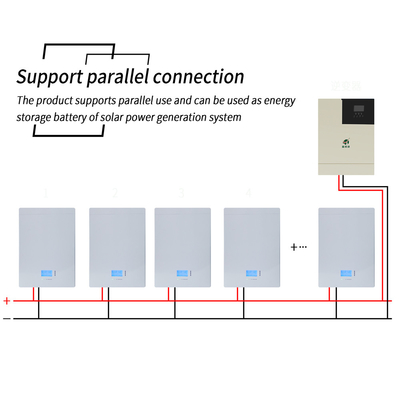

*Support Series and/or Parallel operation
*Automatic system cell balancing
*IP56 water and dust resistant Group 31 case
*Temperature monitoring
*Exceptional voltage stability
*Rugged mechanical design
*Maintenance free
*No hydrogen generation or gassing
*<70% the weight of similarly sized SLA batteries
*Stock Cell available for quick delivery for worldwide
|
Product parameter
|
|
|
Specification
|
8S1P-25.36V-120AH
|
|
Nominal Voltage
|
48V
|
|
Capacity
|
120AH
|
|
Charge current
|
50A
|
|
Discharge current
|
100A
|
|
Physical dimension
|

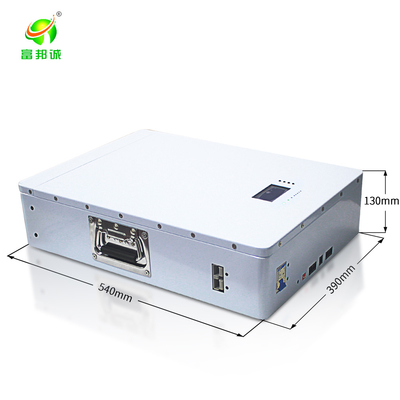

L:540*W:390*H:130(mm)
|
|
Weight
|
34KG
|
|
Cycle life
|
5000
|
|
Cooling method
|
Self Cooling
|
|
Charging temperature
|
0~45℃
|
|
Discharge temperature
|
-20~60℃
|
|
Support inverter brand
|
Goodwe/Growat/Victorn/LXP/Sofar/Deye/Sematec/SREN/TBB/SMA
|
|
In series and parallel
|
Support
|
