Product Details:
|
| Warranty: | 3months-1year | Free Installation Service: | NO |
|---|---|---|---|
| Application: | Home .Commercial .Industrial, Base Station Power Supply, Energy Storage System,solar Systems | Solar Panel Type: | Monocrystalline Silicon, Polycrystalline Silicon |
| Battery Type: | Lithium Ion, Energy Storage System Lithium Battery | Controller Type: | MPPT |
| Load Power (W): | 3KW, 8KW, 5kW, 10KW | Pre-sales Project Design: | Y |
| Battery Size: | 48V 100AH | Battery Cell: | LifePO4 |
| Size: | 430*442*222mm | Cycle Life: | 4000 Cycle |
| Protection: | Built-in Smart BMS | Module/Protocol: | Support Customization |
| OEM/ODM: | Support Customization | Port: | YANTIAN |
| High Light: | 100AH Lithium Iron Phosphate battery,48V solar energy storage battery,MPPT Lifepo4 Lithium Iron Phosphate battery |
||

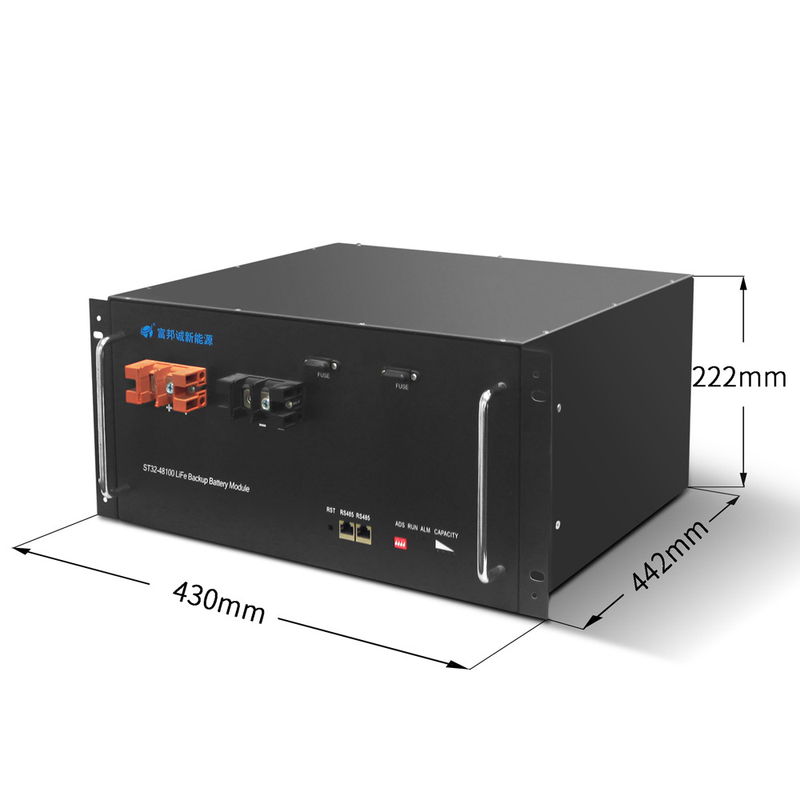

lifepo4 48V 100AH solar power system Lithium Iron Phosphate battery solar battery energy storage battery
48V100AH Energy Storage System Battery Pack (ESS) is equipped with A grade lithium battery cell, high-quality BMS and superior accessories. All energy storage batteries can installation flexibility and maintenance-free.
1. Multiple Communication Protocol: RS485,RS232,CAN,Available.
2. Unlimited Units Parallel Supported.
3. House Made Smart BMS Technologies
4. Wide Compatibility: Well matched with most inverter on the market.
5. Long cycle life: up to 5000 times cycles.
| Parameter | Nominal Voltage(V) | 48V (51.2V) |
| Nominal Capacity(Ah) | 100Ah | |
| Energy | 4.8KWh | |
| Physical | Dimension (mm) | 482*430*175mm/3.5U |
| Weight (Kg) | 45Kg | |
| Electrical | Discharge Voltage (V) | 37.5V |
| Charge Voltage (V) | 54.75V | |
| Standard /Fast charge current | 20A / 0.2C Fast 50A / 0.5C | |
| Max charge current | 100A / 1C Peak | |
| Cell balance | ≥3.4V (can be reset) | Equalized opening voltage |
| ≥30mV (can be reset) | Equalizing the start voltage difference | |
| ≤20mV (can be reset) | Equalize the end voltage difference | |
| Others | Discharge Current | 100A continuous, peak 200A, INSTANTLY 10 Seconds |
| Charging Temperature | 0 to 45 ºC | |
| Discharging Temperature | -20 to 60 ºC | |
| Communication | RS232,RS485,CAN | |
| Certification | CE / UN38.3 | |
| Design life | 10+ Years(25℃/77℉) | |
| Cycle Life | >5000 | |
| Warranty | 36months |
