Product Details:
|
| Warranty: | 3months-1year | Anode Material: | LFP |
|---|---|---|---|
| Chargeable: | Yes | Application: | Toys, Power Tools |
| Battery Size: | Customization | Weight: | 45KG/26KG/customization |
| The Charging Ratio: | 0.2~1C | The Discharge Rate: | 0.2~1C |
| Storage Type: | -10~55℃ | Battery Type: | Power Cabinet Rack Batteries |
| Bzttery Cell: | 3.2v Lifepo4 Battery | Cycle Life: | ≥ 2000 Cycle |
| Protection: | Built-in Smart BMS | Application1: | Power Systems |
| Application2: | Solar Energy Storage System | Application3: | Ups |
| OEM/ODM: | Support Customization | Port: | YANTIAN |
| High Light: | 10kwh 48V Lifepo4 Battery,50ah 48V Lifepo4 Battery,51.2v 200AH Lithium Ion Battery |
||

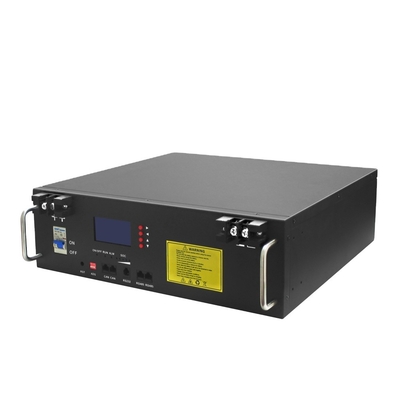

10kwh Customized 48v lifepo4 battery 48v 50AH 100ah 200ah lithium ion battery 51.2V lithium ion batteries
| Model No | FBC 48-50 | FBC 48-100 | FBC 48-150 | FBC 48-200 |
| Voltage | 48V | 48V | 48V | 48V |
| Capacity | 50AH | 100AH | 150AH | 200AH |
| Energy | 2.4KWH | 5.12KWH | 7.68KWH | 10.24KWH |
| Operation voltage | 35.25-54.75 Vdc | 37.6-58.4Vdc | 37.6-58.4Vdc | 37.6-58.4Vdc |
| Max.charging voltage | 54.75Vdc | 58.4 Vdc | 58.4 Vdc | 58.4 Vdc |
| Max.charging and discharging current | 50A | 100A | 100A | 100A |
| Max Power | 2400W | 5120W | 7680W | 10240W |
| Size | 400*442*132mm | 430*440*222mm | customization | customization |
| Weight | 26KG | 45KG | customization | customization |
| Enclosure protection rating | IP65 | |||
| Storage temperature | -10~55℃ | |||
| Certification | ROHS , UN38.3, ROHS | |||
Feature

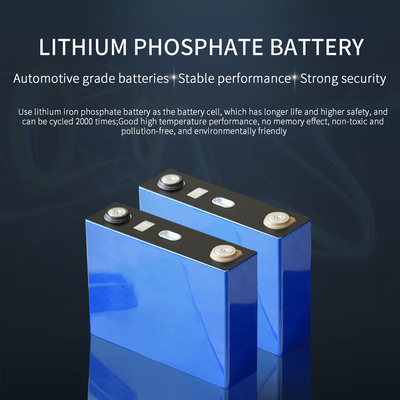

1. Lithium iron phosphate (LiFePO4) is used as positive material, which offers extended cycle life and good safety performance.
2. Embedded BMS offers voltage, current, temperature protection and alarm functions.
BMS can communicate with other device by modbus/RS232/RS485 protocol.
3. Embedded BMS unit measures current, voltage, single cell surface temperature and the ambient temperature of the battery.
4. Embedded BMS offers four remote functions which can communicate with far-end central control center by computer management.
5. The combination of BMS and computer management technology can achieve real-time monitoring and control of various parameters and status.
6. The power system has secondary cut-off protection and when the voltage is too low the system will cut off the support
from the battery to protect the battery service life.
7. Under normal operating conditions, the entire system emits very little noise due to their passive cooling design.
8. Good electromagnetics shielding
