Product Details:
|
| Features: | Built-in Smart BMS | Battery Type: | LiFePO4, Lithium Ion Battery Pack |
|---|---|---|---|
| Battery Size: | 12V 200AH | Battery Cell: | 3.2V LifePO4 Cell |

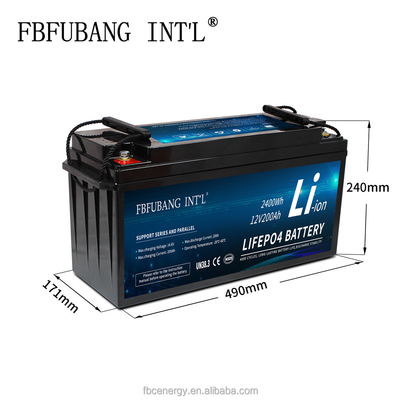

| Size: | 490*171*240mm | Weight: | 19KG |
| Housing: | ABS | Application: | BOATS, Golf Carts, SUBMARINES, Electric Folklifts,solar Systems,RV |
| OEM/ODM: | Support Customization | ||
| High Light: | lithium iron phosphate battery management system,Solar Golf Cart Battery,RV Golf Cart Battery |
||

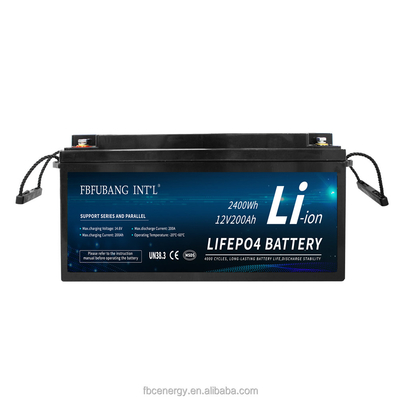

| Battery Model | 12v 200ah lifepo4 battery |
| Nominal Voltage | 12v |
| Nominal Capacity | 200ah |
| BMS | 100A |
| Max Constant Discharge Current | 100A |
| Peaking Discharge Current | 200A |
| Apply for | RV Solar Marine Overland Caravan Home Storage Battery and Off-Grid Applications |
| Cell Type | Lithium Iron Phosphate |
| Connection Type | 4S2P |
| Charger | 14.6V 20A Charher |
| Charge Time | About 8-10h |
| Standard Charge Current (A) | 20A |
| Lifecycle | >80% capacity after 5000 cycles. |
| Battery Size (L*W*T) | 20.5 x 9.5 x 8.6 inches / 52x24x22cm |
| Battery Weight | 50Lbs/22.5kg |
| Warrant | 1 Year |
|
电压Nominal
Voltage |
容量
Typical Capacity |
充电
Charge |
放电
Discharge |
参考尺寸(mm)
Dimension |
重量(KG)
Weight |
|
12V
|
12AH
|
0.2C-1C
|
0.2C-2C
|
L151*W99*H84
|
1.5
|
|
12V
|
50AH
|
0.2C-1C
|
0.2C-2C
|
L223*W120*H175
|
6
|
|
12V
|
100AH
|
0.2C-1C
|
0.2C-2C
|
L256*W165*H210
|
12
|
|
12V
|
150AH
|
0.2C-1C
|
0.2C-2C
|
L406*W173*H236
|
17.5
|
|
12V
|
200AH
|
0.2C-1C
|
0.2C-1C
|
L490*W171*H240
|
19
|
|
12V
|
300AH
|
0.2C-1C
|
0.2C-1C
|
L521*W238*H218
|
23
|
|
12V
|
400AH
|
0.2C-1C
|
0.2C-1C
|
L521*W238*H218
|
32
|
|
24V
|
30AH
|
0.2C-1C
|
0.2C-2C
|
L521*W238*H219
|
12
|
|
24V
|
50AH
|
0.2C-1C
|
0.2C-2C
|
L256*W165*H210
|
12
|
|
24V
|
100AH
|
0.2C-1C
|
0.2C-2C
|
L490*W171*H240
|
19
|
|
24V
|
150AH
|
0.2C-1C
|
0.2C-2C
|
L521*W238*H218
|
23
|
|
24V
|
200AH
|
0.2C-1C
|
0.2C-1C
|
L521*W238*H218
|
32
|
|
24V
|
250AH
|
0.2C-1C
|
0.2C-1C
|
L460*W300*H200
|
36
|
|
24V
|
300AH
|
0.2C-1C
|
0.2C-1C
|
L460*W300*H240
|
48
|
|
48V
|
50AH
|
0.2C-1C
|
0.2C-2C
|
L490*W171*H240
|
19
|
|
48V
|
75AH
|
0.2C-1C
|
0.2C-2C
|
L460*W360*H160
|
35
|
|
48V
|
100AH
|
0.2C-1C
|
0.2C-2C
|
L450*W350*H150
|
32
|
|
48V
|
200AH
|
0.2C-1C
|
0.2C-1C
|
L500*W360*H230
|
65
|
|
48V
|
250AH
|
0.2C-1C
|
0.2C-1C
|
customized size
|
|
|
48V
|
300AH
|
0.2C-1C
|
0.2C-1C
|
customized size
|
|
