Product Details:
|
| Battery Type: | LiFePO4, Rechargeable Lifepo4 Battery | Battery Size: | 12.8v 300ah |
|---|---|---|---|
| Battery Cell: | 3.2V LifePO4 Cell | Size: | 521*238*218mm |
| Cycle Life: | ≥ 2000 Cycle | Housing: | ABS |
| Protection: | Built-in Smart BMS | Application: | BOATS, Golf Carts, SUBMARINES, Electric Folklifts,.Bicycles/Scooters |
| OEM/ODM: | Support Customization | Port: | YANTIAN |
| High Light: | 300AH 12V 24V Battery,lithium iron phosphate battery solar,lithium iron phosphate battery cells |
||

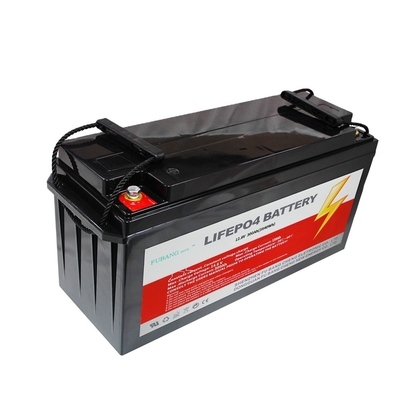

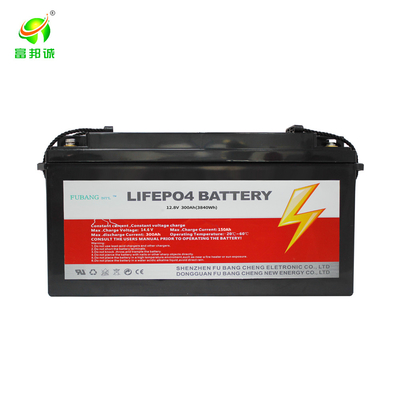

Lithium ion batteries for RVs Solar Low speed vehicle 12V 300AH Battery Pack lithium iron phosphate battery
Application
♦Wheelchairs and scooters
♦Solar/wind energy storage
♦Back-up power for small UPS
♦Golf trolleys & buggies
♦Electric bikes
Key Features
♦Longer Cycle Life : Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery ,
helping to minimize replacement cost and reduce total cost of ownership
♦Lighter Weight : About 40% of the weight of a comparable lead acid battery . A " drop in" replacement for lead acid batteries
♦Higher Power : Delivers twice power of lead acid battery ,even high discharge rate, while maintaining high energy capacity
♦Wider Temperature Range : -20℃~60℃
♦Superior Safety: Lithium Iron Phosphate chemistry eleminates the risk of explosion or combustion due to high impact overcharging
or short circuit situation
| Products Specification | |||
| Model | LFP100-12 | LFP200-12 | LFP300-12 |
| Nominal Voltage(V) | 12.8 | 12.8 | 12.8 |
| Nominal Capacity(Ah) | 100 | 200 | 300 |
| Usable Capacity(Wh) | 1280 | 2560 | 3840 |
| Dimension(mm) | 330*175*215 | 485*175*240 | 520*268*220 |
| Weight(Kg) | 11 | 25 | 30 |
| Cycle Life | ≥4000 @ 25℃ | ≥4000 @ 25℃ | ≥4000 @ 25℃ |
| Working Temperature ℃ | -20~55 | -20~55 | -20~55 |
| Discharge Voltage (V) | 12.8 | 12.8 | 12.8 |
| Charge Voltage(V) | 13.5~14.6 | 13.5~14.6 | 13.5~14.6 |
| Internal Impedance(mΩ) | ≤20 | ≤10 | ≤10 |
| Charge / Discharge Current (A) | charge:50 | charge:40 | charge:60 |
| discharge:50 | discharge:40 | discharge:60 | |
| Design Life(Years) | 20 | 20 | 10 |
