Product Details:
|
| Battery Type: | Lithium Ion | Battery Type: | 18650 Battery |
|---|---|---|---|
| Battery Size: | 12.8V 24AH | Weight: | 1.5kg |
| Warranty: | 12 Months | Application: | BOATS, Golf Carts, SUBMARINES, Electric Folklifts,solar Systems,RV |
| Port: | YANTIAN | ||
| High Light: | 32650 Lithium Battery Pack,18650 Lithium Battery Pack,Photovoltaic 12v 24ah lifepo4 battery |
||

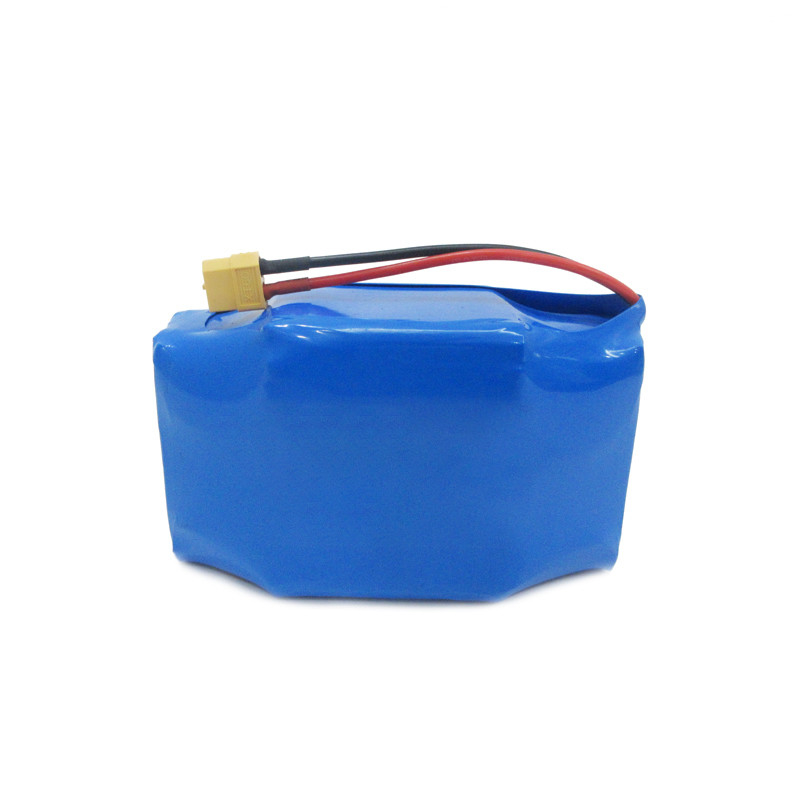

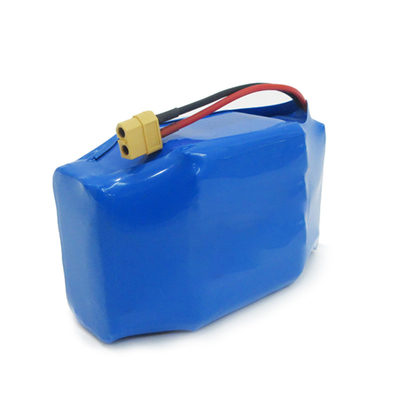

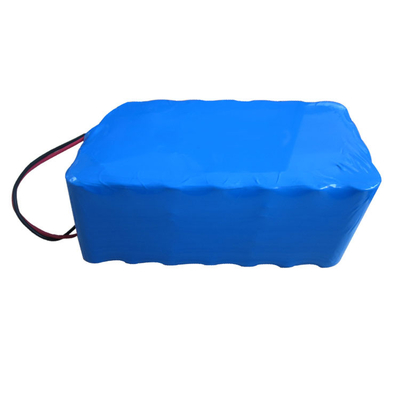

12v 24ah 18650 32650 solar battery cell Photovoltaic cleaning machine tracker lifepo4 battery
Factory Customized Lithium Lifepo4 battery li ion battery pack 6.4V 12.8V 48v battery Pack
Our Advantages
1. Professional Tech. background, excellent workmanship, guaranteed quality;
2. Own manufacturing, high capacity, cost competitive;
3. Professional sales team provide professional services;
4. Mature forwarder team and back-up team;
5. Customization acceptable;
|
Norminal Volt
|
12.8V
|
|
Norminal Capacity
|
24Ah (0.2C to 10V at 25℃)
|
|
Power (Watt)
|
256Wh
|
|
Internal resistance(AC)
|
≤80mΩ
|
|
Cycle life
|
>2000 cycles @0.2C 80%DOD
|
|
Discharge
|
<3%
|
|
Charging volt
|
14.6±0.2V
|
|
Charging type
|
0.2C to14.6V, then14.6V,charge current to 0.02C (CC/CV)
|
|
Charging current
|
5-10A
|
|
Peak charging current
|
20A
|
|
Charging cut-off volt
|
14.6V±0.2V
|
|
Constant current
|
10A
|
|
Peak constant current
|
20A
|
|
Discharge cut-off current
|
10V
|
|
Connection mode
|
LF26650 4S6P
|
|
Case
|
PVC / Plastic / Custom
|
|
Dimension(mm)
|
151*99*95mm/ custom
|
|
Weight (lbs./kg.)
|
1.5kg
|
|
Terminal
|
M4
|
|
Communication protocol (Optional)
|
/
|
|
Extend (Optional)
|
/
|
