Product Details:
|
| Battery: | Hybrid Inverter Lifepo4 Battery Pack | Inverter: | 5KW/customize |
|---|---|---|---|
| Capacity: | 5kwh/customize | Customization Services: | OEM/ODM |
| Output Voltage Waveform: | Pure Sine Wave | Rated Input Voltage: | 220/230Vac |
| High Light: | MSDS 48v Lithium Ion Battery,51.2v Solar Panel Battery,Pure Sine Wave Lifepo4 Battery Pack |
||
lithium ion battery solar cells solar panel battery 48v 51.2v lifepo4 battery pack

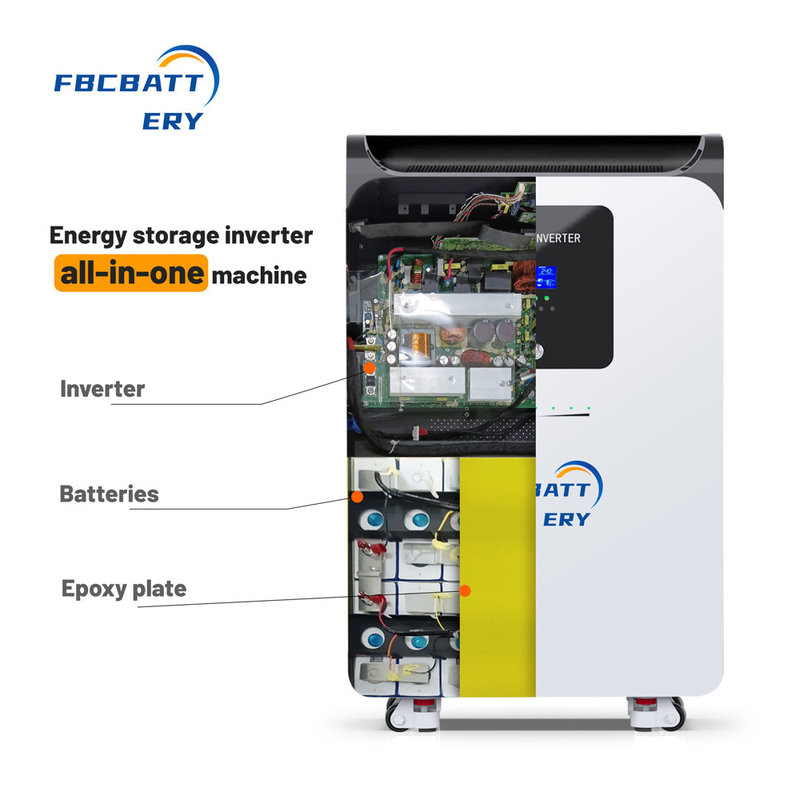

The product combines solar energy storage & mains charging energy storage, AC sine wave output in one of the new hybrid photovoltaic energy storage inverter control system, using DSP control, through advanced control algorithms, high response speed, high reliability and high industrialization standards and other characteristics. With solar only, mains priority, solar priority and mains & solar four charging modes are optional; Two output modes are optional for inverter and mains to meet different application needs
1. It adopts fully digital voltage and current double closed-loop control, advanced SPWM technology, and outputs pure sine wave.
2. It has two output modes: mains bypass and inverter output, and has the function of uninterrupted power supply.
3. There are 4 charging modes to choose from: solar only, mains priority, solar first, hybrid charging.
4. LCD screen design, dynamic display of system data and operating status.
5. With power saving mode function, reduce no-load loss.
6. Adopt intelligent adjustable speed fan, efficient heat dissipation, prolong system life.
7. With a number of protection functions, 360° all-round protection.
8. With complete short circuit protection, over under voltage protection, overload protection, back-irrigation protection, etc
| Grid module | |
| Rated input voltage | 220/230Vac |
| Input voltage range |
(170Vac~280Vac) ±2% (90Vac-280Vac)±2% |
| frequency | 50Hz/ 60Hz (Automatically detects) |
| Frequency range |
47±0.3Hz ~ 55±0.3Hz (50Hz); 57±0.3Hz ~ 65±0.3Hz (60Hz); |
| Overload/short circuit protection | disconnect |
| efficiency | >95% |
| Transfer time (bypass and inverter) | 10ms (Typical value) |
| AC backfill protection | YES |
| Maximum bypass overload current | 40A |
| Inverter module | |
| Output voltage waveform | pure sine wave |
| Rated output power | 5000 (VA) |
| Power Factor | 1 |
| Rated output voltage | 230Vac |
| Output voltage error | ±5% |
| Output frequency range |
50Hz ± 0.3Hz 60Hz ± 0.3Hz |
| Efficiency | >92% |
| Overload protection |
(102%< load <125%) ± 10%: report an error and shut down the output after 5 minutes; (125%< load <150%) ± 10%: report an error and shut down the output after 10 seconds; Load >150% ±10%: report an error and shut down the output after 5 seconds;
|
| peak power | 10000VA |
| On-load motor capacity |
4HP
|
| Battery voltage range | 40.0Vdc~60Vdc ± 0.6Vdc (Under-voltage alarm / shutdown voltage / the over-voltage alarm/over-voltagerenew…LCD Screen can be set) |
| Power saving mode | load≤50W |
| Grid charging | |
| maximum-charging current (can be set) | 60A |
| Charging current error | ± 5Adc |
| charging voltage range | 40 – 58Vdc |
| Short circuit protection | Circuit breakers and blown fuses |
| Circuit Breaker Specifications | 40A |
| Overcharge protection | Alarm and turn off charging after 1 minute |
| Solar change | |
| Maximum PV ,Open circuit voltage | 145Vdc |
| PV Operating voltage range | 60-145Vdc |
| MPPT voltage range | 60-115Vdc |
| Battery voltage range | 40-60Vdc |
| Maximum input power | 4400W |
| Solar charging current range (can be set) |
0-80A |
| Charging short circuit protection | blow fuse |
| Wiring protection | reverse polarity protection |
| Maximum Hybrid Charge Current( PV+AC) | |
| Maximum hybrid charge Current (can be set) | 0-140A |
| Other Specification | |
| Range of working temperature range | -15°C to 55°C |
| Storage temperature range | -25°C ~ 60°C |
| Humidity range | 5% to 95% (Three anti-paint protection) |
| Noise | ≤60dB |
| Heat dissipation | Forced air cooling, adjustable wind speed |
| Communication interface | USB/RS485(WiFi/GPRS)/Dry Node Control |
