Product Details:
|
| Battery Type: | LiFePO4, Lifepo4 Battery Call | Battery Size: | 3.2v 280ah |
|---|---|---|---|
| Size: | 7.2X17.4X20.7 Cm | Weight: | 5.6kg |
| Nominal Voltage: | 3.2Volt | Internal Resistance(1Khz): | ≤ 0.2mΩ |
| Cycle Life: | 6000 Times | Application: | BOATS, Golf Carts, SUBMARINES, Electric Folklifts,solar Systems |
| Package: | Add Pe Foam ,then Put Into Carton | Port: | YANTIAN |
| High Light: | 3.2 V 280ah Lifepo4 Battery Cell,7.4 V Lithium Battery Pack,Li Ion Lithium Battery Pack |
||
|
General Specification
|
Style
|
Prismatic Lifepo4 Battery
|
|
|
Typical Capacity
|
280Ah
|
|
|
Typical Voltage
|
3.2V
|
|
|
Internal Resistance(1KHz)
|
≤0.2mΩ
|
|
|
Standard Charge/Discharge Current
|
0.5C/0.5C
|
|
|
Standard Charge/Discharge Cut-off Voltage
|
3.65V/2.5V
|
|
|
Max. Continuous Charge/Discharge Current
|
1C/1C
|
|
|
Cyclelife
|
6000 Times
|
|
Environmental
|
Charge Temperature
|
0℃~55℃
|
|
|
Discharge Temperature
|
-22℃~55℃
|
|
|
Storage Temperature
|
-20℃~45℃( within 1 month)
|
|
|
|
0℃~35℃( within 1 year)
|
|

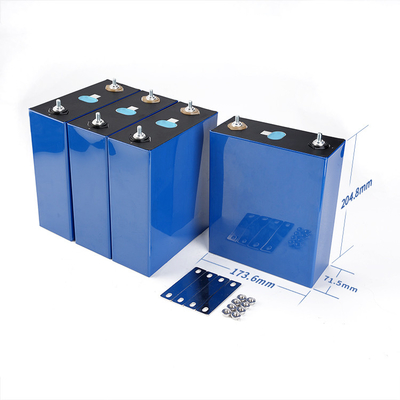

Dimension and Weight
|
Width
|
173.7±0.3mm
|
|
|
Thickness
|
71.5±0.5mm
|
|
|
Height(Total Height)
|
204.8±0.5mm
|
|
|
Height(Principal Height)
|
200.2±0.5mm
|
|
|
Central Distance of Positive and Negative Pole
|
123.0±0.3mm
|
|
|
Net Weight
|
5.3±0.30kg
|
