Product Details:
|
| Warranty: | 3months-1year | Anode Material: | LFP |
|---|---|---|---|
| Chargeable: | Yes | Application: | Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Folklifts, Electric Vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies |
| Weight: | 19KG | The Charging Ratio: | 0.5~2C |
| The Discharge Rate: | 0.5~2C | Storage Type: | -20~45℃ |
| Battery Type: | Li-ion Battery Packs | Battery Size: | Support Customization |
| Cycle Life: | ≥3000 Cycle | Protection: | Built-in Smart BMS |
| OEM/ODM: | Support Customization | ||
| High Light: | 24V 100AH Solar Storage Battery Pack,Solar Storage Battery Pack Rechargeable,UPS Lithium Ion Lifepo4 |
||
Warranty
The period of warranty is 24 months from the date of shipment;
We guarantee to give a replacement in case of cells with defects proven due to manufacturing process instead of the customer abuse and misuse.
|
Product Specification
|
|
|
|
Product Name
|

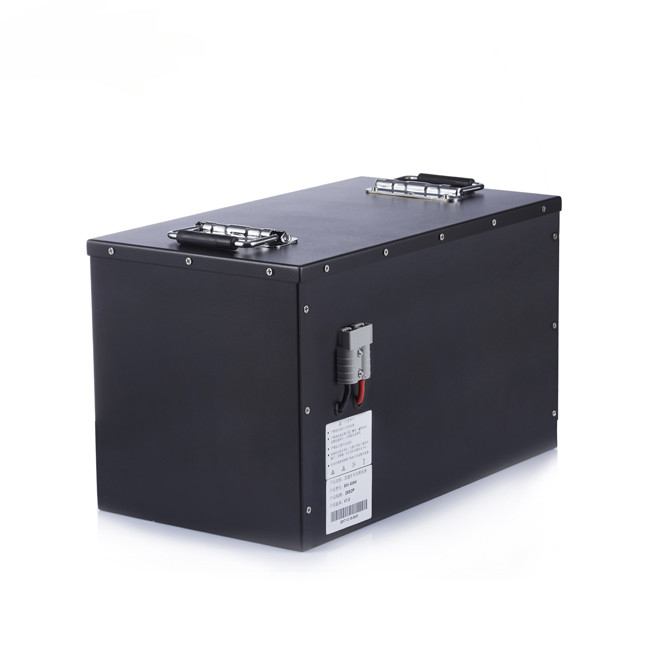

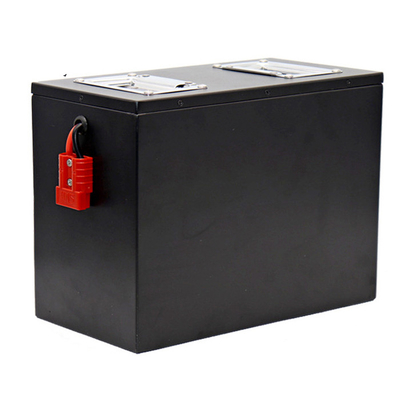

24V 100AH Lithium ion Battery Pack
|
|
|
Voltage Nominal
|
24V (Customized 3.2V 12V 24V 36V 48V 72V …720V)
|
|
|
Capacity Nominal
|
100AH (Customized 30Ah,90Ah, 200Ah, 300Ah, 500Ah)
|
|
|
Standard Charge Current
|
20A
|
|
|
Max Charge Current
|
100 A
|
|
|
Charge Cut-off Voltage
|
29.4V
|
|
|
Standard Discharge Current
|
50A
|
|
|
Max Continuous Discharge Current
|
100A
|
|
|
Discharge Cut-off Voltage
|
21 V
|
|
|
Dimension
|

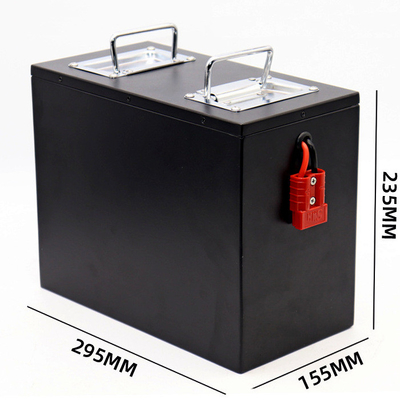

295*155*235mm Or Customized
|
|
|
Cell Brand
|
Samsung cells
|
|
|
Cell Type
|
NMC (Lithium polymer, Lithium Ion, LiFEPO4, etc)
|
|
|
Temperature Range
|
Charge temperature: -5°C to 75°C
|
|
|
|
Discharge temperature: -5°C to 75℃
|
|
|
|
Storage temperature: -20°C to 60℃
|
|
|
Life Cycle
|
More than 1000cycles @0.2C 100% DOD
|
|
|
Package Material
|
Metal Case
|
|
|
BMS and battery function
|
Over-charge, Over-Discharge, Over-current, Short Circuit, High Temperature, Balance Charge/Discharge, Cascade function,
Communication protocol function, Battery Power indicator, WaterProof |
|
|
Certification
|
IEC 62133, UN38.3, MSDS, UL, KC, CB…etc
|
|
|
Application
|
Motorcycles, cars, buses, trucks, yachts, Launch, ships, racing cars, Tricycles, Pedicab, three wheeler vehicle, Limousine,
Telecom Stations, Bank Power supply systems, UPS, Solar Energy Storage, Wind Energy Storage, Hospital Power Supply system, Home Power System |
|
|
Key Words
|
Li-ion battery pack, 18650 battery pack, Lithium Ion battery pack, Rechargeable Lithium battery pack, 18650 Lithium battery pack,
E-bike batteries, Custom Battery pack |
|
Contact Person: Elaine
Tel: 86-13544151055
